Sale

ลำโพง AIMLINE ALM10.2 active Column-Speaker

ลำโพง Column-Speaker AIMLINE ALM10.2 แบบมีกำลังขยายในตัวขนาดดอกลำโพง 3.5 นิ้ว 10 ดอก 8 x Class-D-amplifier, 8 x 65 watt

ราคาไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…..

฿190,000.00 ฿170,000.00

สอบถามและสั่งซื้อสินค้า

Description

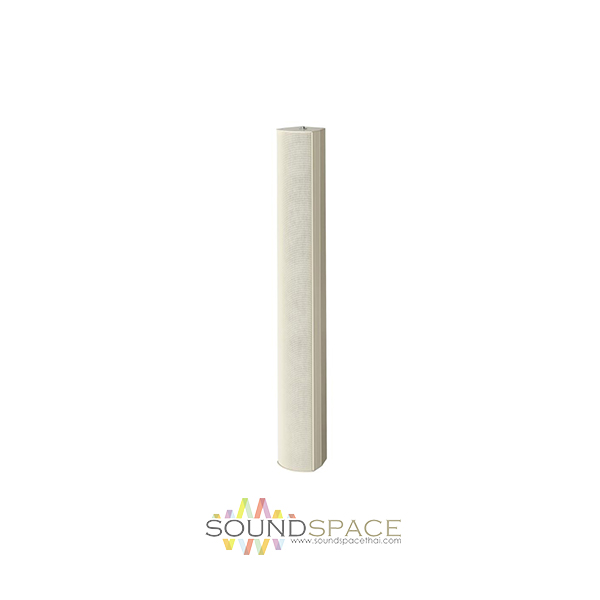

AIMLINE ALM10.2 Digital steerable active Column-Speaker

ลำโพง Column-Speaker AIMLINE ALM10.2 แบบมีกำลังขยายในตัวขนาดดอกลำโพง 3.5 นิ้ว 10 ดอก 8 x Class-D-amplifier, 8 x 65 watt

โดยลำโพงแต่ละดอกจะมี DSP และ Amplifier แยกกันทำงานเป็นอิสระออกจากกัน ทำให้ลำโพงชนิดนี้ สามารถปรับขนาดมุมกระจายเสียงทางแนวตั้ง (Vertical Beam) ได้ และสามารถปรับทิศทางของเสียงให้พุ่งขึ้นหรือลง โดยที่ตัวลำโพงยังตั้งตรงอยู่เช่นเดิม ทำให้สามารถติดลำโพงแนบกับผนังได้โดยไม่ต้องก้มหรือเงย จึงสามารถกลมกลืนไปกับการตกแต่งภายในได้เป็นอย่างดี

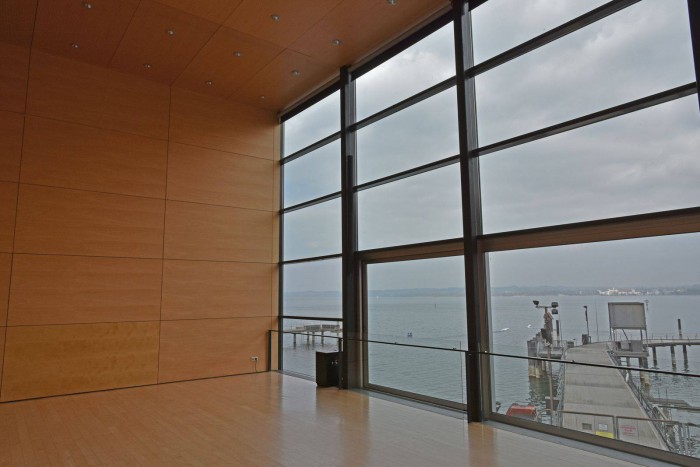

12898342_1043487422359217_7397321372858101269_o-700x467

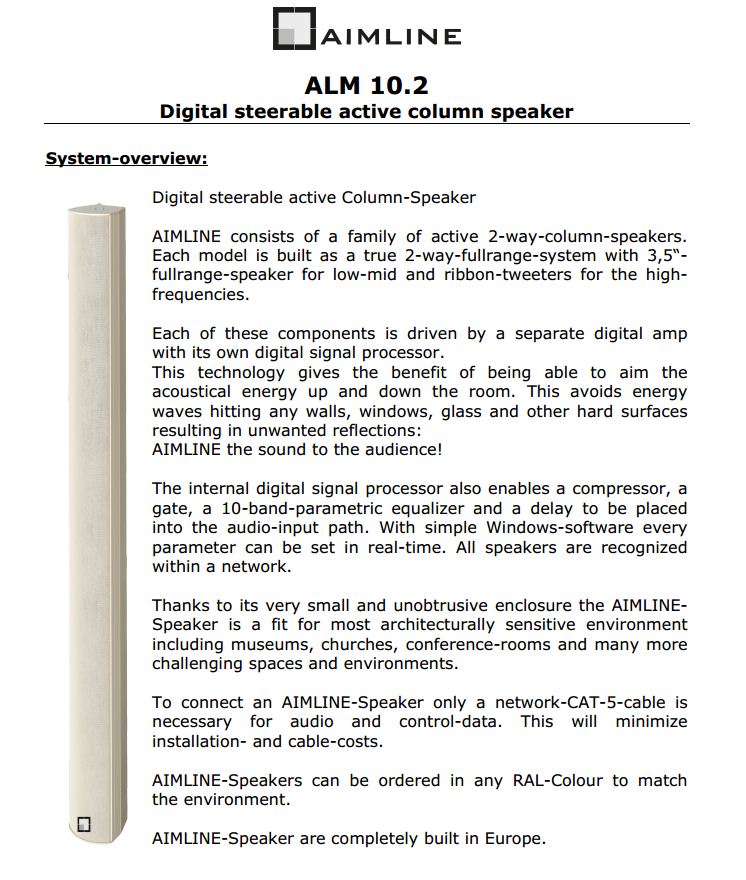

AIMLINE consists of a family of active 2-way-column-speakers. Each model is built as a true 2-way-fullrange-system with 3,5“-fullrange-speaker for low-mid and ribbon-tweeters for the high-frequencies. Each of these components is driven by a separate digital ampwith its own digital signal processor. This technology gives the benefit of being able to aim the acoustical energy up and down the room. This avoids energy waves hitting any walls, windows, glass and other hard surfaces resulting in unwanted reflections: AIMLINE the sound to the audience
The internal digital signal processor also enables a compressor, a gate, a 10-band-parametric equalizer and a delay to be placed into the audio-in put path. With simple Windows-software every parameter can be set in real-time. All speakers are recognized within a network. Thanks to its very small and unobtrusive enclosure the AIMLINE-Speaker is a fit for most architecturally sensitive environment including museums, churches, conference-rooms and many more challenging spaces and environments. To connect an AIMLINE-Speaker only a network-CAT-5-cable is necessary for audio and control-data. This will minimize installation-and cable-costs. AIMLINE-Speakers can be ordered in any RAL-Colour to match the environment.
AIMLINE-Speaker are completely built in Europe.

Features:

  • 2-Way-fullrange-System 10 x 3,5“ neodymium-chassis  2 x HF-Ribbon-drivers
  • 8 -Channel -DSP
  • 8 x Class-D-amplifier, 8 x 65 watt
  • Aluminium, powder coated
  • completely built in Europe.

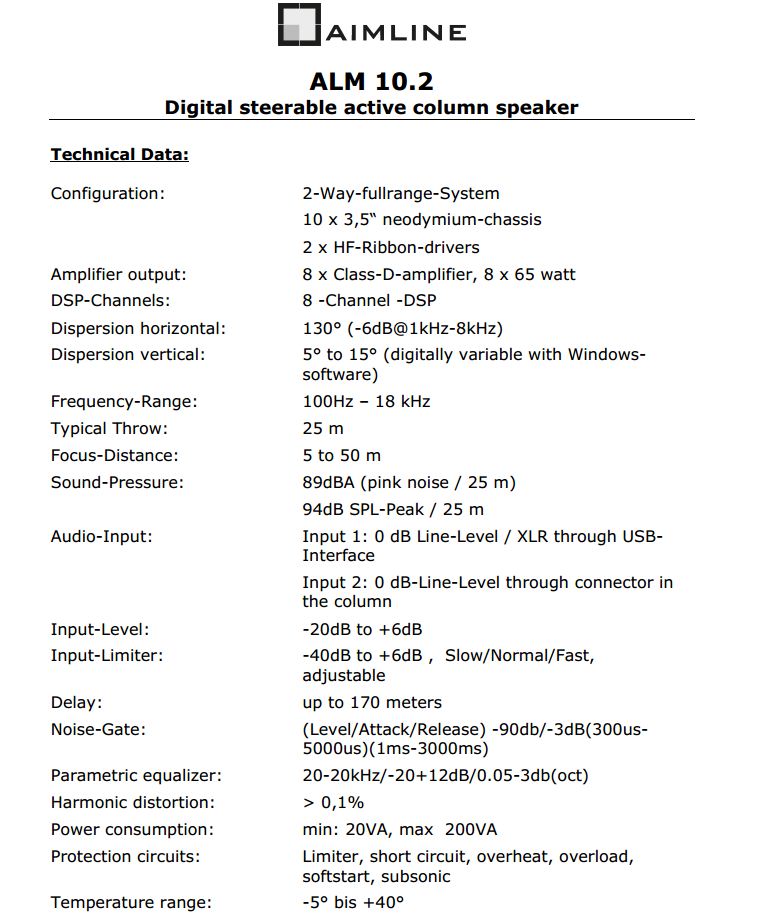

Specifications

Configuration:  2-Way-fullrange-System  10 x 3,5“ neodymium-chassis  2 x HF-Ribbon-drivers

Amplifier output:  8 x Class-D-amplifier, 8 x 65 watt

DSP-Channels: 8-Channel-DSP

Dispersion horizontal: 130° (-6dB@1kHz-8kHz)

Dispersion vertical: 5° to 15° (digitally variable with Windows-software)

Frequency-Range: 100Hz -18 kHz

Typical Throw: 25 m

Focus-Distance: 5 to 50 m

Sound-Pressure: 89dBA (pink noise / 25 m) 94dB SPL-Peak / 25 m

Audio-Input: Input 1: 0 dB Line-Level / XLR through USB-Interface

Input 2:0 dB-Line-Level through connector in the column

Input-Level:-20dB to +6dB

Input-Limiter: -40dB to +6dB, Slow/Normal/Fast, adjustable

Delay: up to 170 meters

Noise-Gate: (Level/Attack/Release) -90db/-3dB (300us-5000us) (1ms-3000ms)

Parametric equalizer: 20-20kHz/-20+12dB/0.05-3db(oct)

Harmonic distortion: > 0,1%

Power consumption: min: 20VA, max: 200VA

Protection circuits: Limiter, short circuit, overheat, overload, softstart, subsonic

Temperature range: -5° bis +40°

Enclosure: Aluminium, powder coated

Colour: RAL 9016 standard

Weight: 5,8 kg

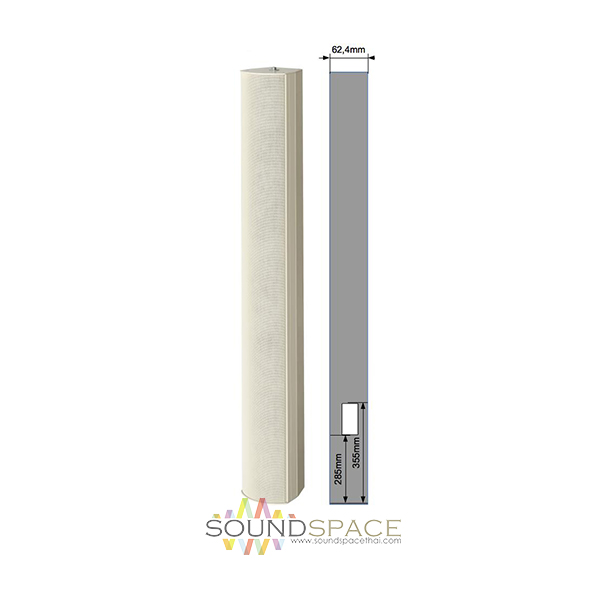

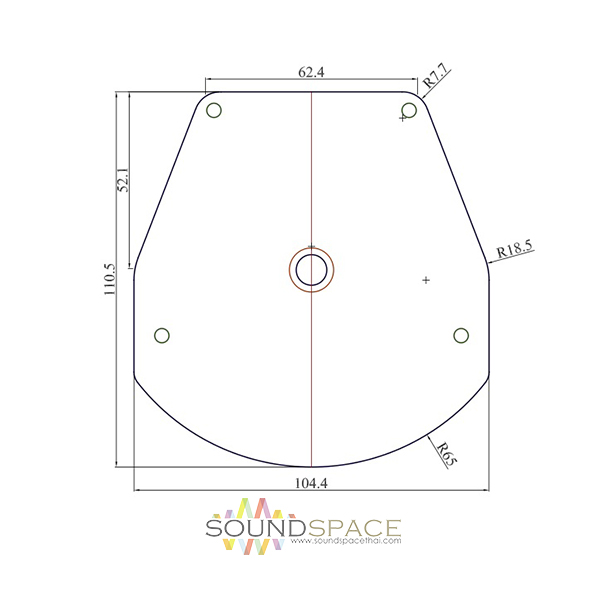

Dimensions: H -1156 x W -105x D – 111 (mm)
